| Power | L**W*H(mm) | Lumen/Power | Item No |
|---|---|---|---|
| Low | 1180*200*42 | 4000lm/40W | 811S.H220W |
| 1470*200*42 | 5000lm/50W | 811S.H225W | |
| 2340*200*42 | 8000lm/80W | 811S.H240W | |
| Medium | 1180*200*42 | 5600lm/56W | 811S.C228W |
| 1470*200*42 | 7000lm/70W | 811S.C235W | |
| 2340*200*42 | 112000lm/112W | 811S.C256W |
Material & technology

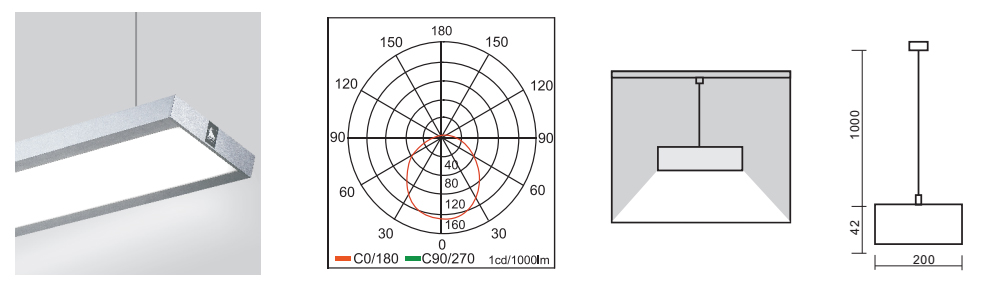

Light distribution：Direct Light
Light source：High brightness SMD LED, or T5 (G5)
Color rendering：CRI≥80, can customize CRI≥90
CCT：3000K, 4000K, 6500K, can customize 5000K
Driver：Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming
Lamp material：High grade anodizing aluminum (6063 Alloy), painted with White can customize other color
Diffuser：Opal prismatic diffuser with high transmittance and uniformity light
End caps material：ABS
IP：20
Connection：The luminaries can be connected with end cap in 180°，or can make shadowless continuous lighting system
Installation：S-Suspended, C-Ceiling mounted
